Tool outline from a photo
Put the tool on a white A4 sheet and photograph it from above. The sheet sets the scale, the studio traces the outline and cuts it into the box. The photo never leaves your device.
Free in the browser, no account
From tape measure to finished print file.
3D Print Studio plans boxes, Gridfinity baseplates and relief cards so they fit your storage space and your printer. You measure, the studio calculates. With a 3D preview and export for Bambu Studio and any other slicer.
Boxes and tool photos are calculated only in your browser.
Drawers have odd sizes. So do print beds.
Ready-made inserts almost fit. And almost means a gap that makes everything rattle.
The Gridfinity grid rarely divides evenly. Whether to print the rest as a margin or stretch the grid is otherwise a job for the calculator.
Stacking two levels means working out feet, stacking lips and plate floors by hand, and finding the mistake after printing.
Boxes module
Four steps to a print plate
You go step by step. On the right you always see the real model in 3D, with dimensions right on the part.
-

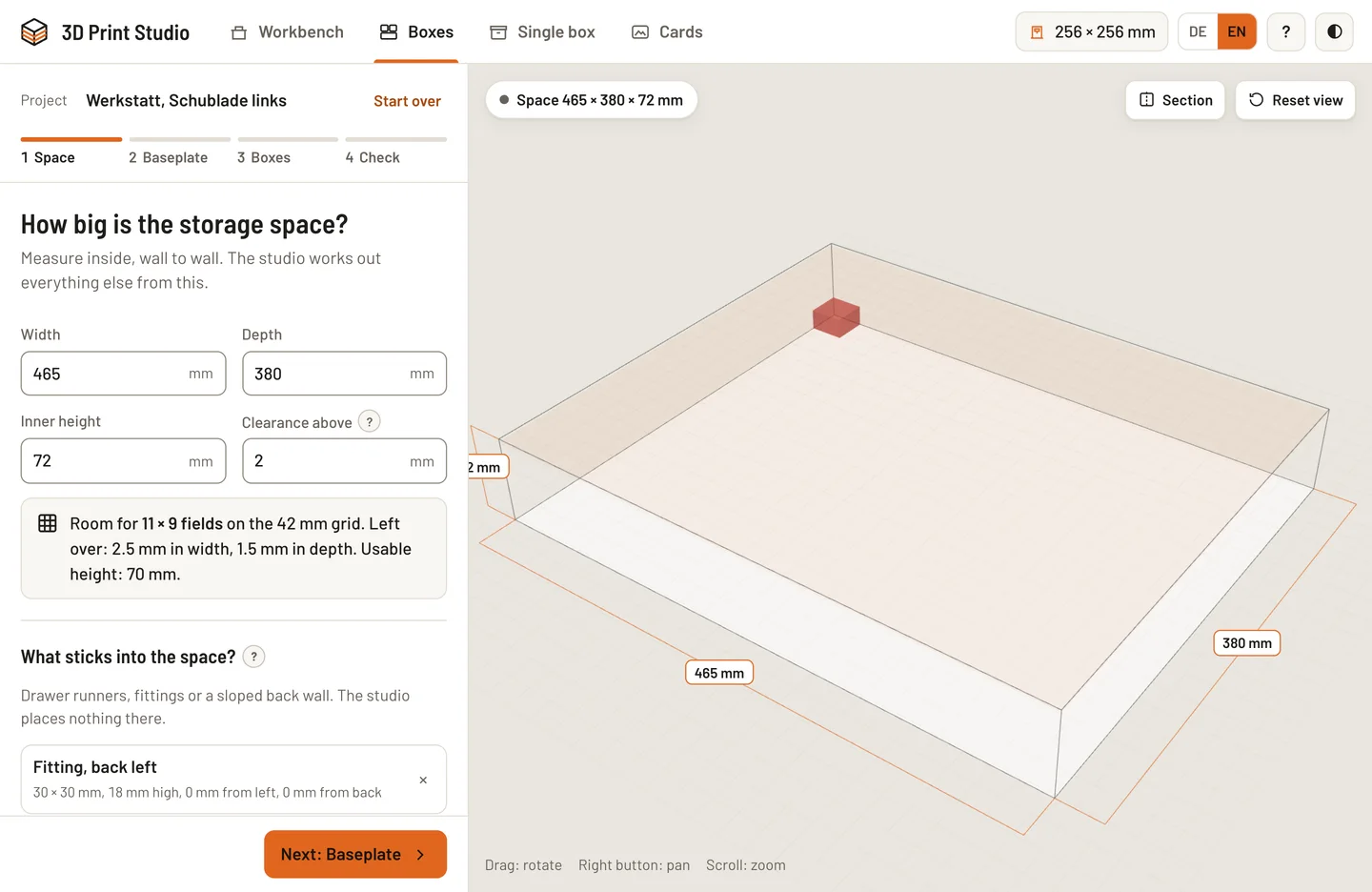

Measure the space
Width, depth and height, measured wall to wall. Add anything that sticks in, such as drawer runners or fittings. The studio shows at once how many 42 mm fields fit and how much height is left.
-

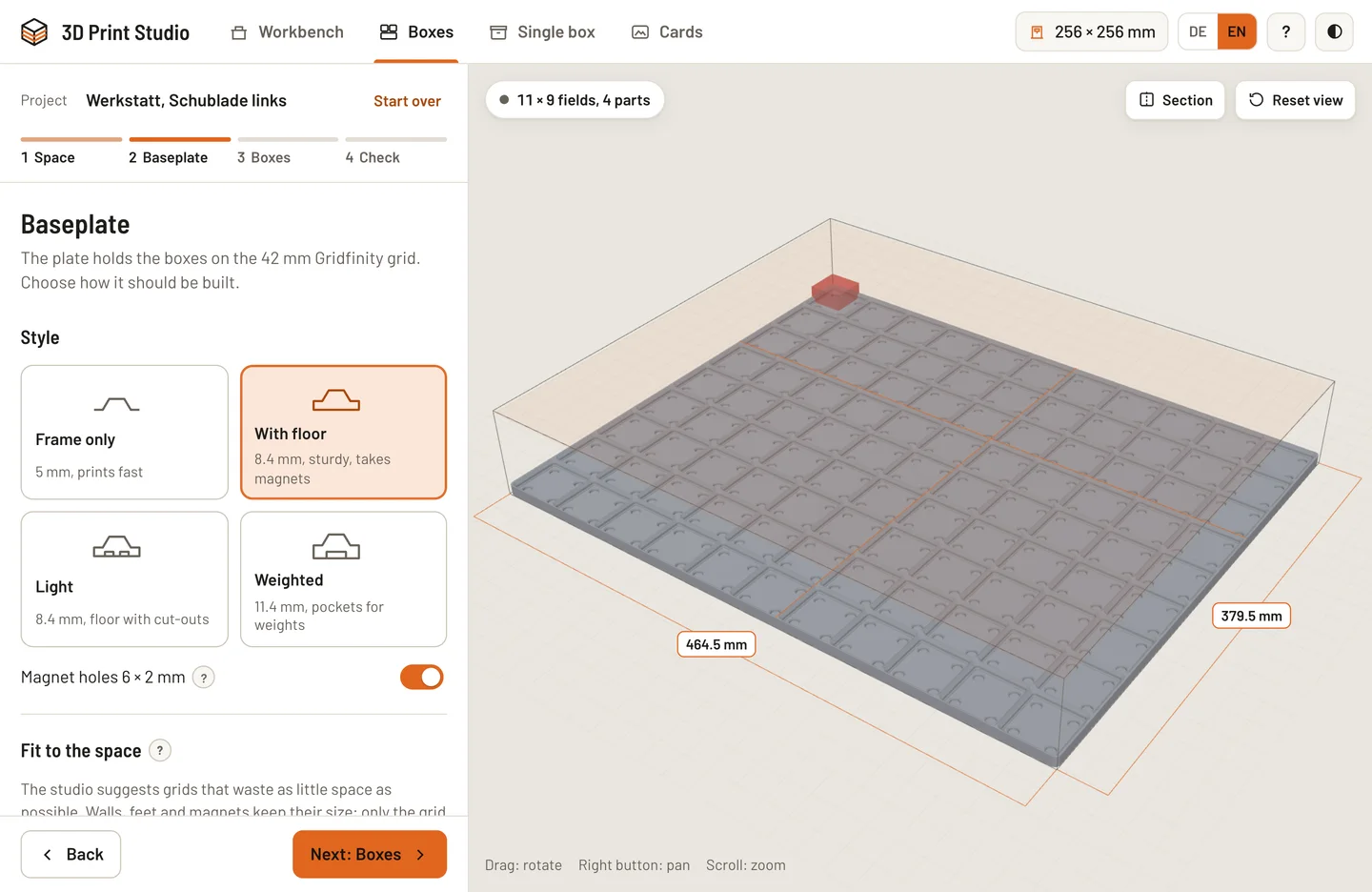

Choose a baseplate
Four styles, from frame only to weighted. The studio suggests grids that waste as little space as possible and splits the plate for your print bed, with dovetail connectors.
-

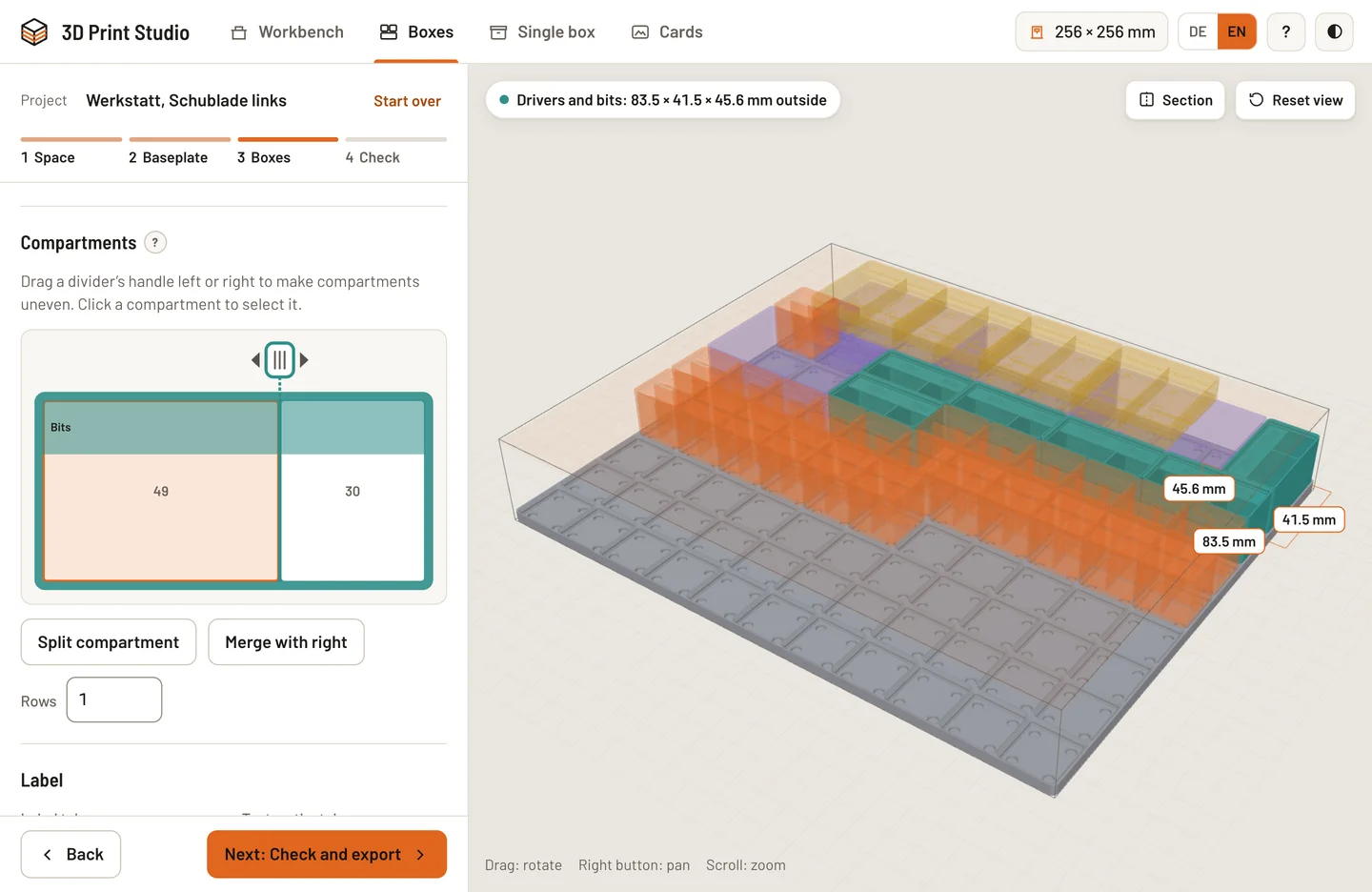

Design the boxes
Size in fields, height in units. Drag compartments unevenly in both directions. Add raised or engraved labels, a finger scoop, a bit insert and a tool outline.
-

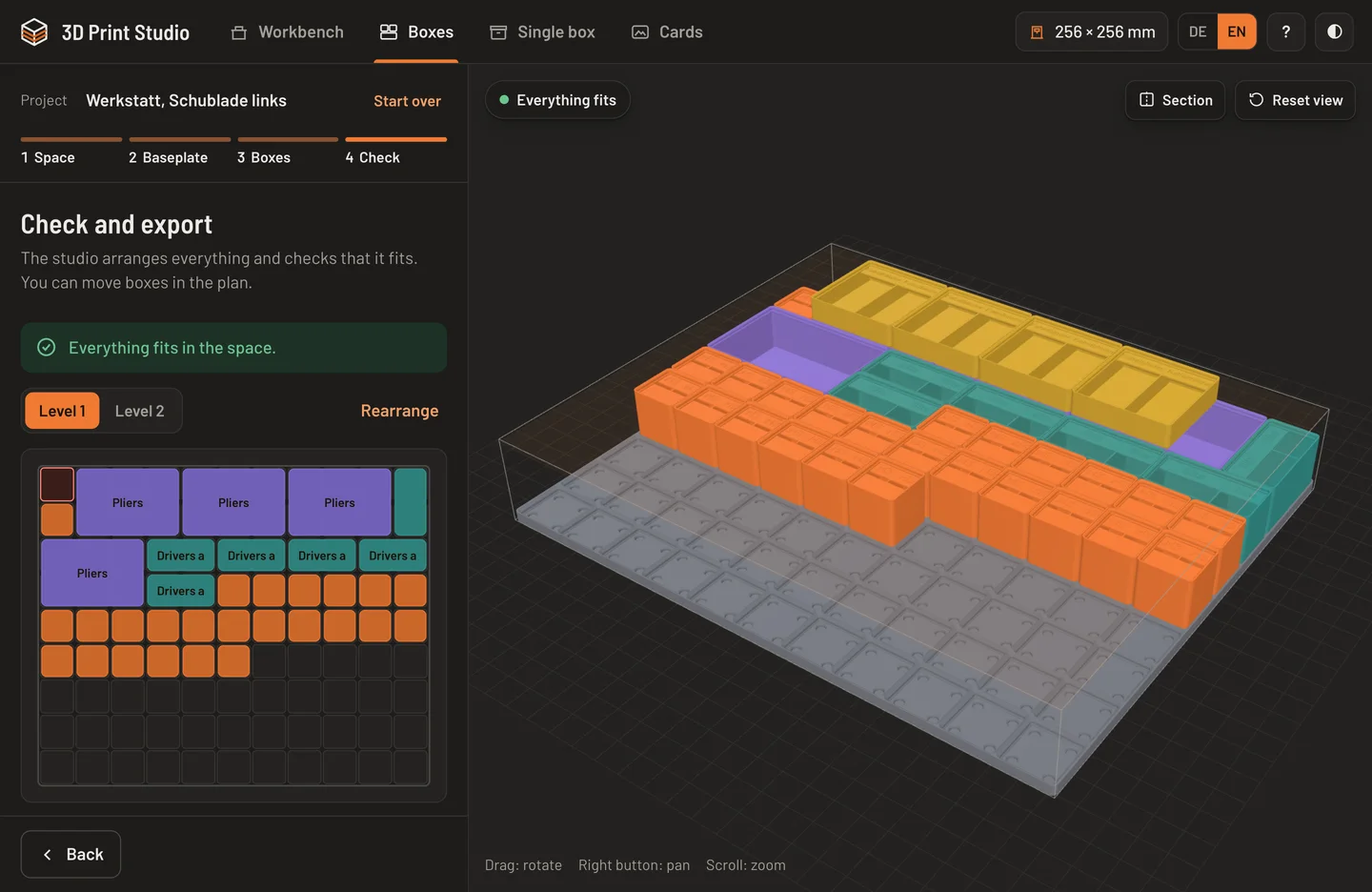

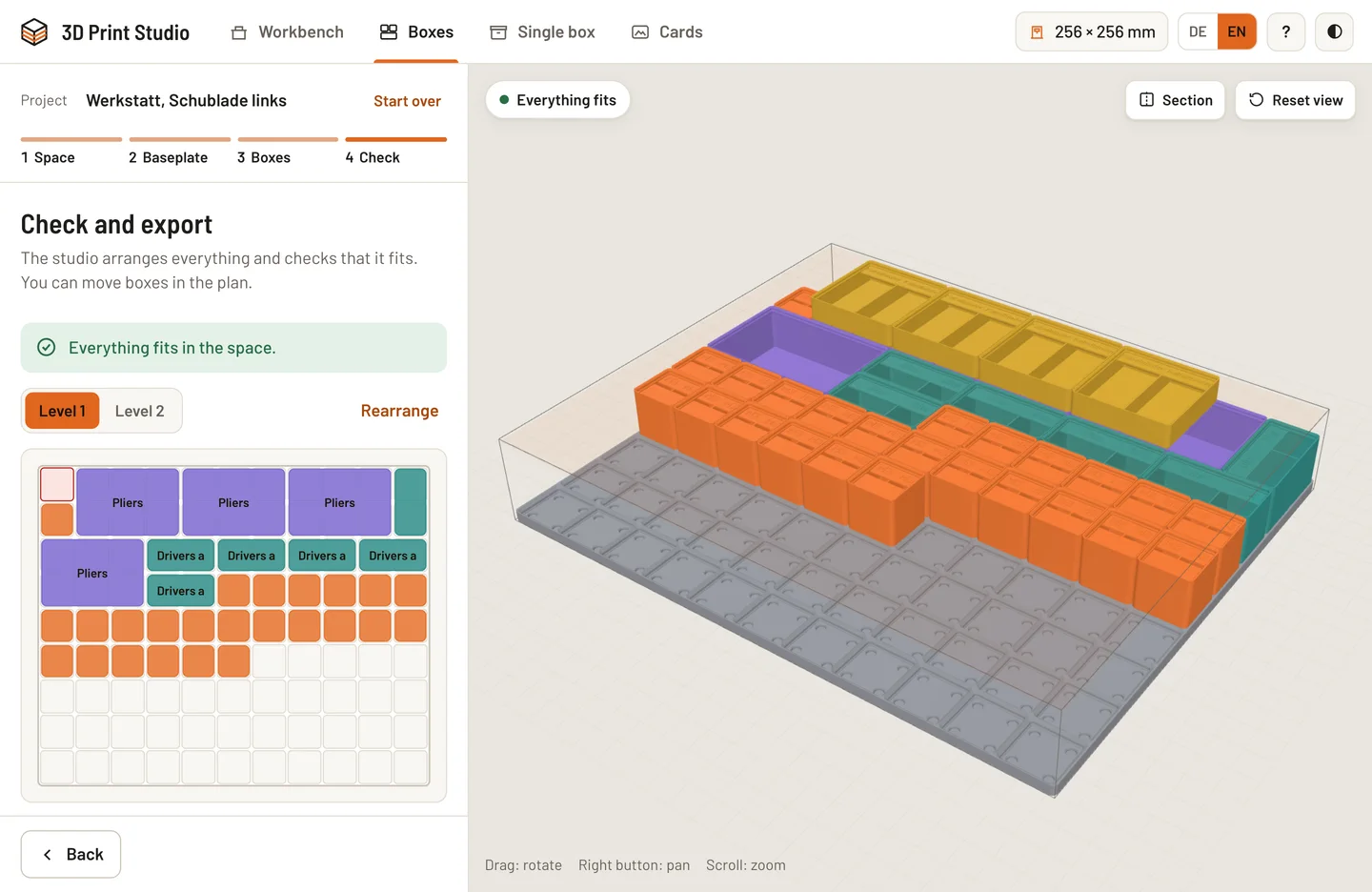

Check and export
The studio arranges every box, including on a second level, and tells you what does not fit and why. Move boxes in the plan. Then one 3MF file for Bambu Studio or every part as STL.
What makes it different
Three things the studio does for you
Tolerances from your test print
Every printer prints a little differently. A small test piece shows how much clearance your parts need and which magnet hole fits. Enter the value once and every module uses it.
Files that remember
Every exported file carries its settings. Drop it back into the studio and continue exactly where you left off. This also works with files from the earlier box generator.
Single box module

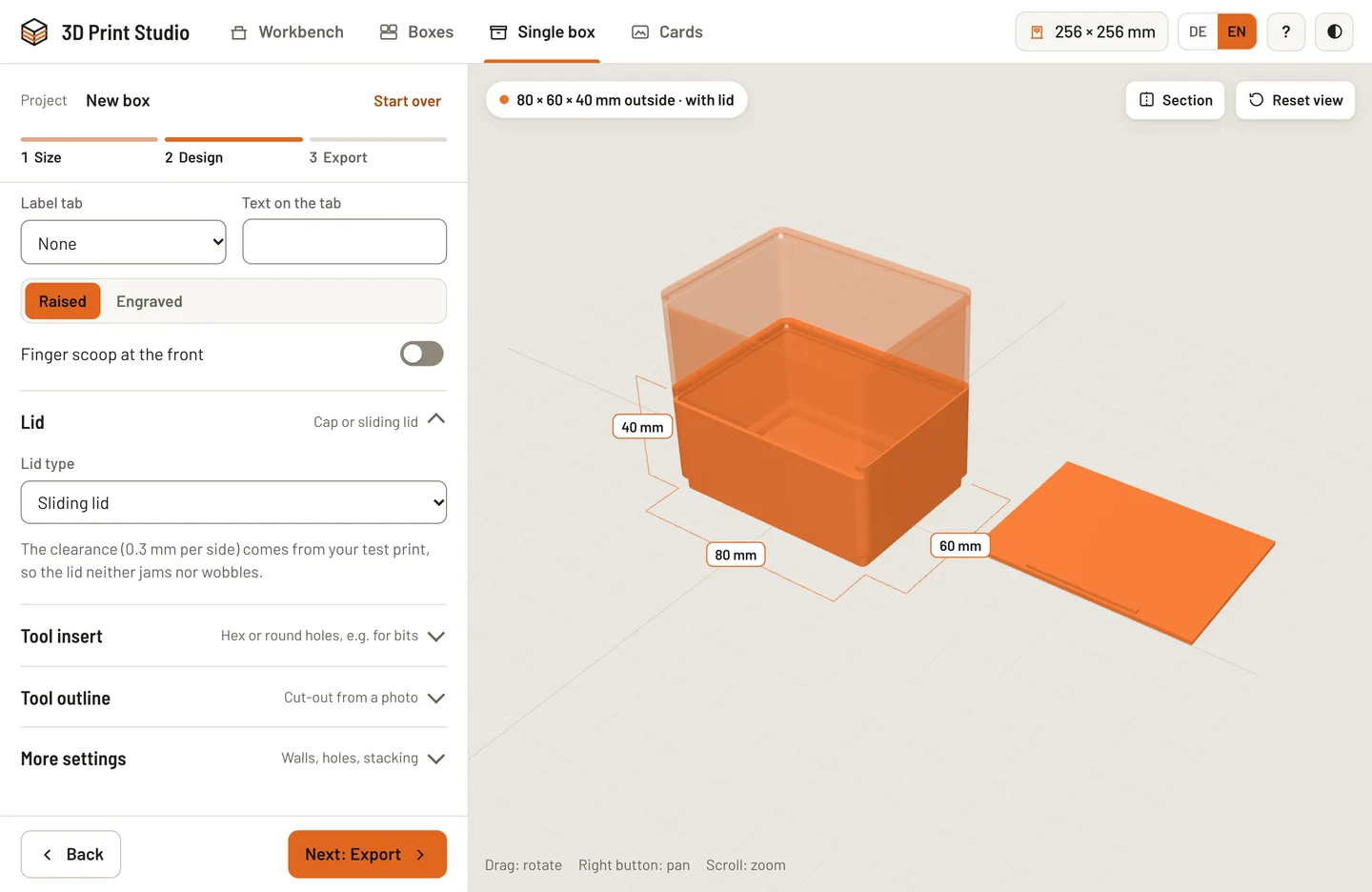

One box, exactly the size you need
Not every box needs a baseplate. For shelves, shallow drawers or as a gift, build a single box in free sizes.
- Enter the size or have it calculated from a space, such as three by two boxes for a shallow drawer
- Stackable with a recessed foot, the preview shows a second box on top
- Cap lid or sliding lid, with the clearance from your test print
- Compartments, label, finger scoop, tool insert and tool outline as in the boxes module

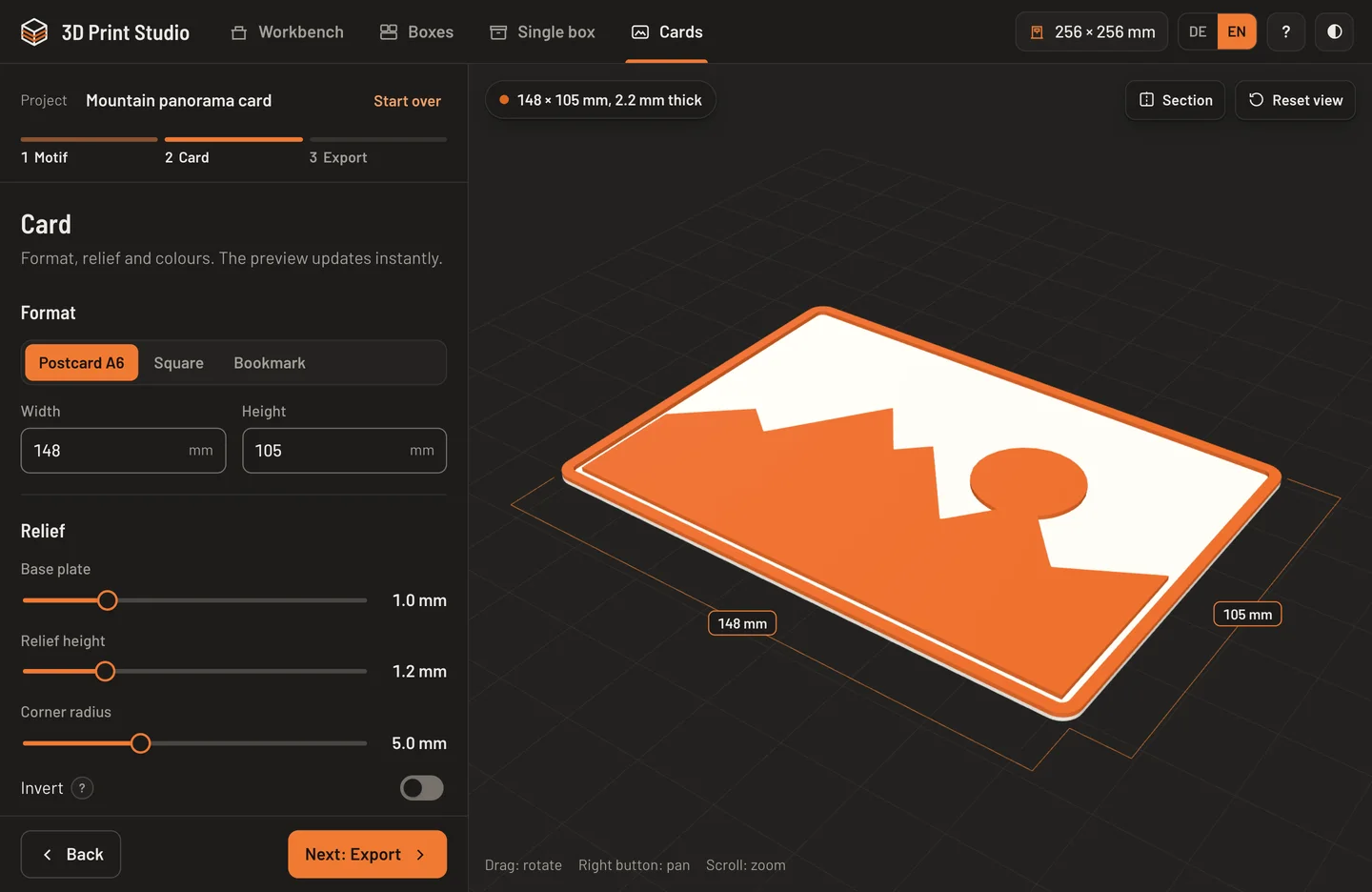

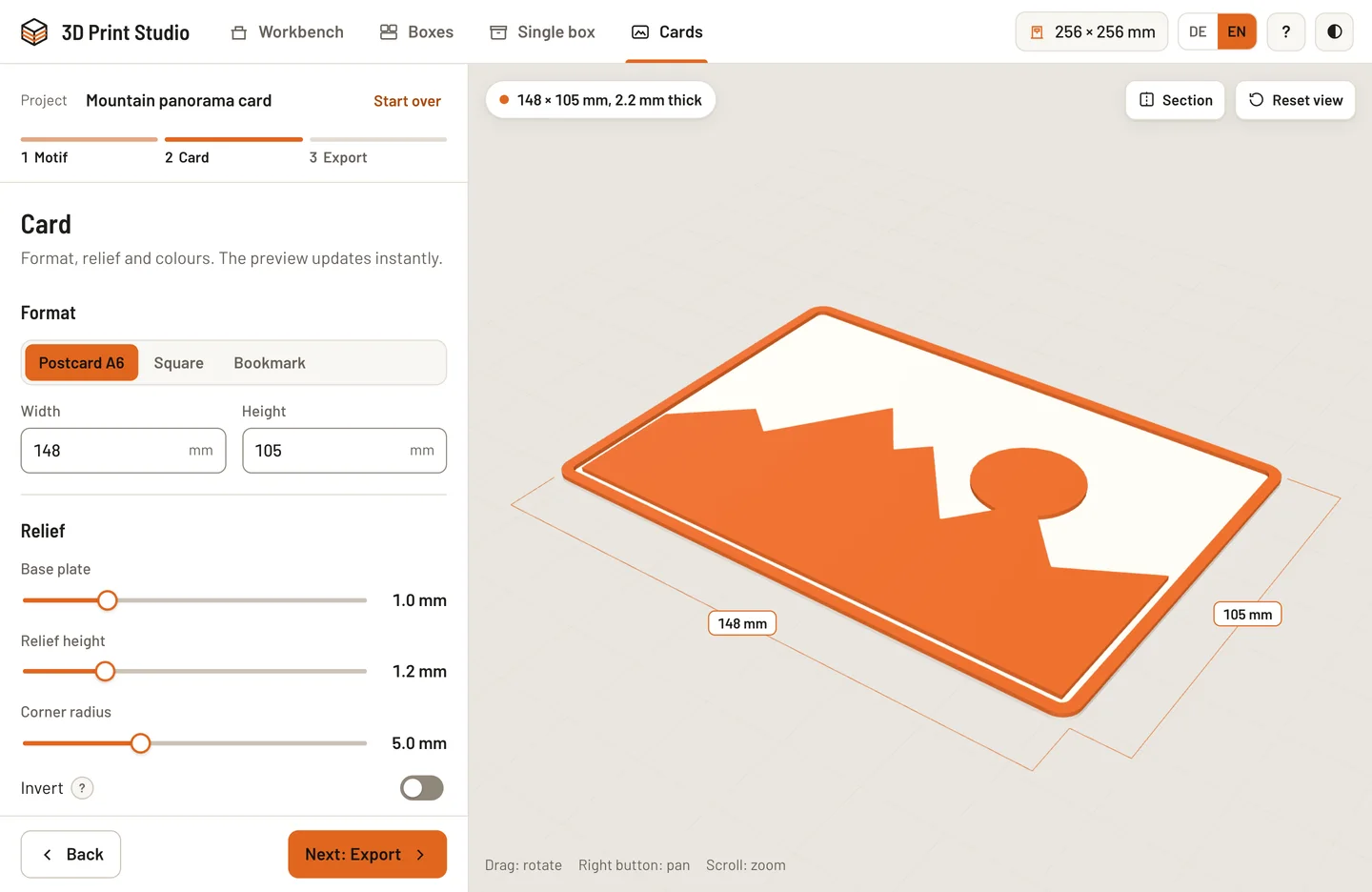

Cards module

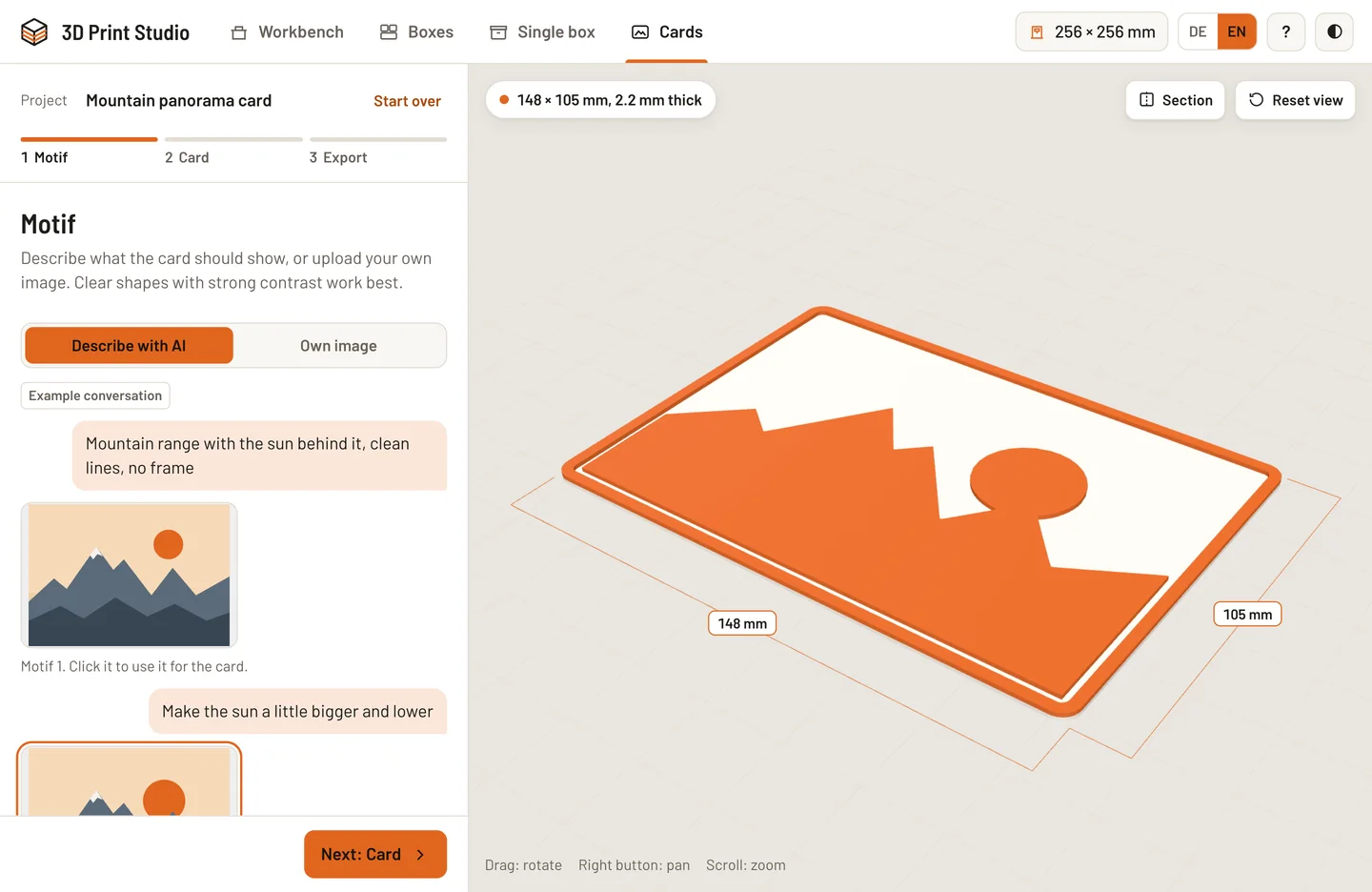

Relief cards from an idea
Describe a motif or upload your own image. The studio turns it into a black-and-white template and a card with a raised relief.
- Describe a motif with AI and refine it in conversation, or use your own image
- Postcard, square, bookmark or your own size up to your print bed
- Relief, border, corner radius and text on the card
- Two colours: the layer for the colour change is already in the 3MF file, with AMS or as a pause
Take a look

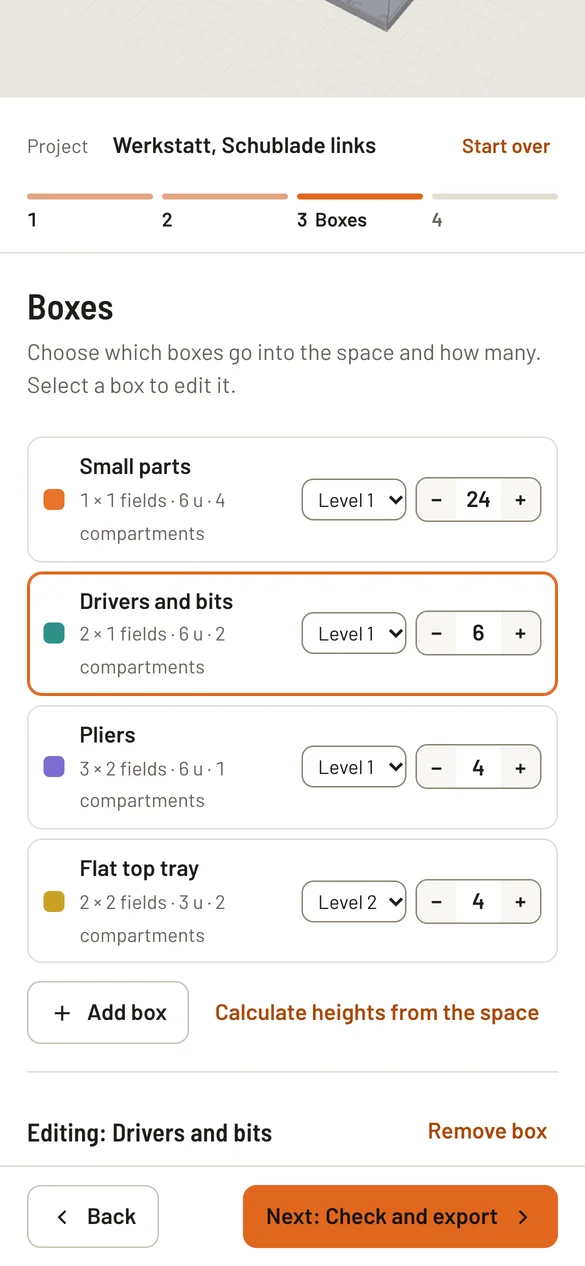

Light and dark, at the desk and on the phone
The studio follows your device setting and adapts to every screen width.
Complete
Everything inside
No tiers, no subscription. This is the whole studio.
Space & baseplate
- Inner size, clearance above
- Obstacles with size and position
- Grid suggestions by space, rounded down to 0.01 %
- Leftover as a margin, left, right or centred
- Styles: frame only, with floor, light, weighted
- Magnet holes 6 × 2 mm
- Split for the print bed with dovetail connectors
Boxes
- Standard Gridfinity, half fields too
- Compartments in columns and rows, freely movable
- Label on the tab, raised or engraved
- Finger scoop at the front
- Tool insert with hex or round holes
- Tool outline from a photo or SVG
- Adjustable walls, floor, magnet and screw holes
Check & export
- Automatic layout, largest boxes first
- Second and third level on equally tall boxes
- Move with the mouse or arrow keys
- Height bar up to the highest point
- Estimated material and print time, print bed check
- Distribute heights from the space automatically
- 3MF for Bambu Studio, ZIP with STL and parts list
Relief cards
- AI motif, 5 images a day
- Own image as PNG, JPG or WebP
- Light/dark threshold, invert
- Formats and custom sizes
- Border, corner radius, text in three fonts
- Colour change in the 3MF, with AMS or pause
Single box
- Free sizes, entered or calculated from a space
- Stackable with a recessed foot
- Cap or sliding lid
- Every design option of the boxes
- STL or 3MF, lid as a separate part
Printer, files, use
- Print bed, nozzle, layer height, material
- Test piece for clearance and magnet fit
- Settings inside every STL and 3MF, earlier box generator files too
- Projects are kept in your browser
- German and English, light and dark
- Explanations at the term, help page, keyboard and screen reader
Free. No account. No small print.
3D Print Studio is a private project. It costs nothing, shows no ads and asks for no sign-up.
AI images for cards are limited to five a day because every image costs real money. Your own images are unlimited.
- Your data stays with you
- Boxes, baseplates and tool photos are calculated only in your browser. Card images stay on the server for one hour at most.
- No cookies, no tracking
- The studio keeps your projects in your browser, nothing else.
- Made for your slicer
- STL and 3MF open in Bambu Studio, PrusaSlicer, Orca and any other slicer.
